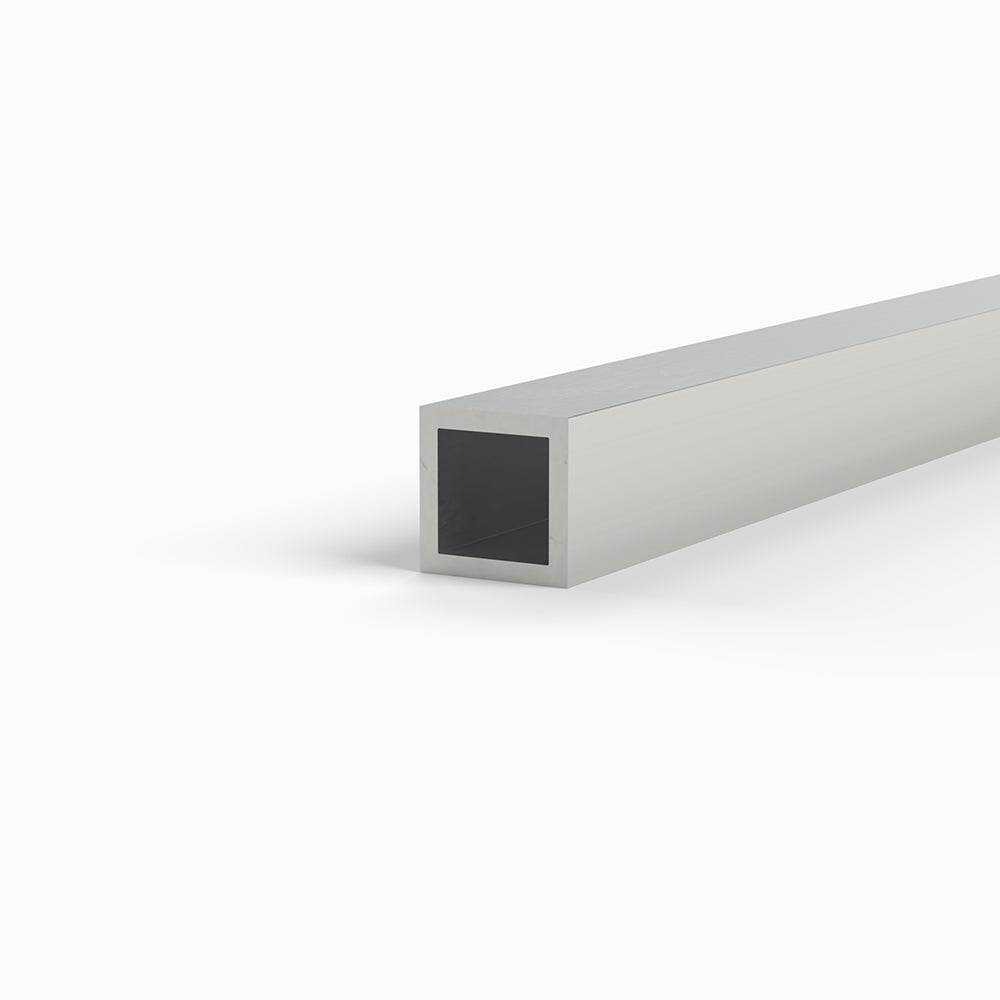

Actual Sizes: 25.4mm x 25.4mm x 3.18mm - Mill Finish Aluminium Box Section - Imperial Size: 1" x 1" x 11swg Discover our high-quality aluminium... Read more
Actual Sizes:
Discover our high-quality aluminium square box section, available in various lengths to suit your project needs. Manufactured from durable, lightweight aluminium, this versatile product is perfect for a wide range of applications across industries.
Whether you're creating frameworks, fabricating furniture, constructing support structures, or working on automotive, signage, or architectural projects, aluminium square box section is the ideal choice. Its excellent strength-to-weight ratio, corrosion resistance, and easy workability make it a favourite among professionals and DIY enthusiasts alike.
| Technical Specifications | |
| Alloy | 6063-T6 |
| Weight - Kg/m | 0.76 |
| Size | 25.4 x 25.4 |
| Internal Size | 19.04mm |
| Wall Thickness | 3.18mm |
| Tensile Strength | 215 MPa |
| Shear Strength | 150 MPa |
| Density | 2.70 g/cm³ |
| Melting Point | 655 °C |
| Machinability | Good |
| Corrosion Resistance | Good |
